Commanding your Philips Hue lights with PowerShell

A couple of years ago I bought a number of Philips Hue bulbs and put them in the living areas of my house. Typically we control them via the Hue App on our phones, or via the Google Assistant. This all works very well, but of course I’m a techie and have a bunch of other Internet of Things devices and it would be great to integrate the Hue lights with those.

This post is the first in doing that integration. Setting up access to the Philips Hue Bridge and manipulating the lights. For ease of initial experimentation I’m using PowerShell to perform the orchestration. The API calls can easily be transposed to any other language as they are simple web requests.

Prerequisites

First you will need to have your Philips Hue lights setup with your Philips Hue Bridge. Test the lights are all working via the Philips Hue mobile app.

Locate the IP address of your Philips Hue Bridge. I found mine easily via my Unifi console and you should be able to get it via your home router.

Getting Started

Navigate to your Philips Hue Bridge using a browser and its IP Address. You will see a splash screen with a list of the open source modules that it utilises. Now append the IP Address with /debug/clip.html For me that is;

http://192.168.1.124/debug/clip.html

Create an Account

The Rest API takes a JSON payload. We can quickly create that in the API Debugger. See my example body below and change the URL to /api. Whilst pressing the button on the top of your Philips Hue Bridge select the POST button. This will create an account that you can then use to orchestrate your hue lights.

{“devicetype”:”AzureFunction#iphone Darren”}

Create Philips Hue User.PNG

Via the API we’ve just created an account. Copy the username from the response. We’ll need this for the API calls.

Test Connection

Change the URL in the debugger as shown below and clear the Message Body. Select GET and you should get returned the light(s) connected to your Philip Hue Bridge.

http:///api//lights


Controlling a Light

I have many lights. In our kitchen we have three pendant lights in a row that are all Philips Hue lights. I’m going to start by testing with one of them. Choosing one from the list from the response above Light 5 should be the middle light. The command is:

http://<yourHueBridge/api//lights//state

In the body put On and True to turn on. False would be to turn it off. Select PUT. My light turned on. Updating the message body to false and pressing PUT turned it off.

Turn Light On.PNG

Using PowerShell to Manage a Philips Hue Light

Now lets manipulate the Hue Light using PowerShell now that we have an account and know the light we want to manage.

Update the following test script for the IP address of your Philips Hue Bridge, the light number you wish to control and the username you got when you performed the enablement steps earlier. The script will then get the current status of the light and reverse it (turn OFF if it was ON and ON if it was OFF).

Flipping the state of a light

If you have configured everything correctly your light will change and you will get a success reply and the state it transitioned too.

Reverse Light State.PNG

Controlling Multiple Lights

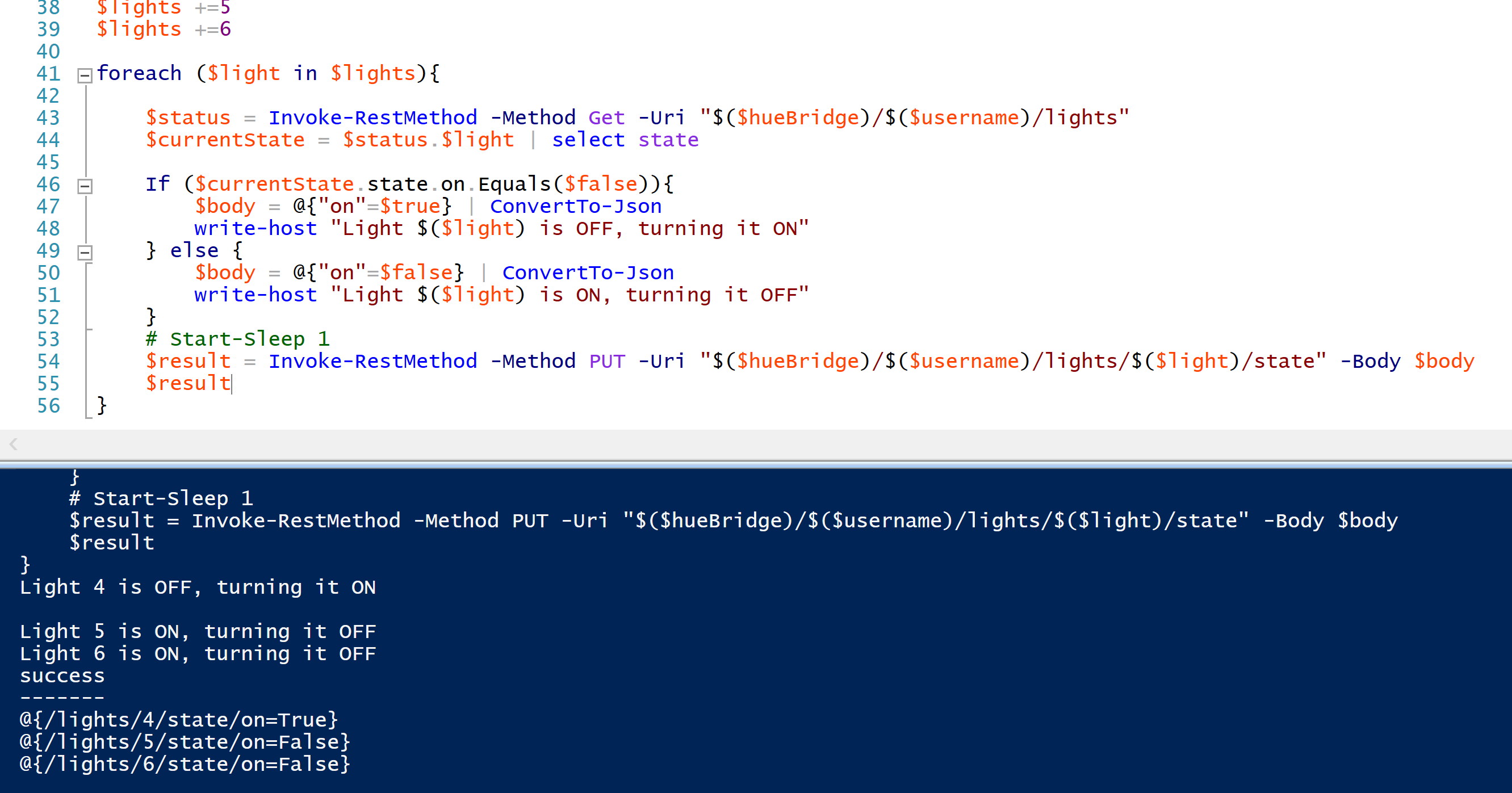

Now let’s do that for multiple lights. In my kitchen we have 3 drop lights over the counter bench. Lets control all three of those. I created a collection of the light numbers, then iterate through each one and flip its state. NOTE: you can also control multiple lights through the Groups method. I won’t be covering that though

I had one set in an inverse state to the other two before I started, to show each is individually updated.

Reverse Multiple Lights State.PNG

Controlling Multiple Lights and Changing Colors

Now lets change the color. Turn the lights on if they aren’t already and make the color PINK.

As you can see, iterating through the lights the script turns them on and makes them Pink.

Turn Lights On and make them PINK.PNG

Finally, effects for multiple lights

Now lets turn on all the lights, and set them to use the color loop effect (transition through the color spectrum) for 15 seconds then make them all pink.

The lights transition through the color spectrum for 15 seconds then the effect is turned off and the color is set to pink.

Turn Lights On Color Effect and make them PINK.PNG

Summary

We created an account on the Philips Hue Bridge, were able to enumerate the lights that we have and then orchestrate them via PowerShell.

Here is a short video showing three lights being turned on, changing color and iterating through the color spectrum then setting them Pink.

Commanding Philips Hue Lights with PowerShell

Video for blog post https://wordpress.com/post/blog.darrenjrobinson.com/37865

Now to integrate them with other IoT Devices.
