How to Synchronize users Active Directory/Azure Active Directory Photo using Microsoft Identity Manager

Introduction

Whilst Microsoft FIM/MIM can be used to do pretty much anything your requirements dictate, dealing with object types other than text and references can be a little tricky when manipulating them the first time. User Profile Photos fall into that category as they are stored in the directory as binary objects. Throw in Azure AD and obtaining and synchronizing photos can seem like adding a double back-flip to the scenario.

This post is Part 1 of a two-part post. Part two is here. This is essentially the introduction to the how-to piece before extending the solution past a users Active Directory Profile Photo to their Office 365 Profile Photo. Underneath the synchronization and method for dealing with the binary image data is the same, but the API’s and methods used are different when you are looking to implement the solution for any scale.

As for why you would want to do this, refer to Part two here. It details why you may want to do this.

Overview

As always I’m using my favourite PowerShell Management Agent (the Granfeldt PSMA). I’ve updated an existing Management Agent I had for Azure AD that is described here. I highly recommend you use that as the basis for the extra photo functionality that I describe in this post. Keep in mind the AzureADPreview, now AzureAD Powershell Module has change the ADAL Helper Libraries. I detail the changes here so you can get AuthN to work with the new libraries.

Therefore the changes to my previous Azure AD PowerShell MA are to add two additional attributes to the Schema script, and include the logic to import users profile photo (if they have one) in the Import script.

Schema.ps1

Take the schema.ps1 from my Azure AD PSMA here and add the following two lines to the bottom (before the $obj in the last line where I’ve left an empty line (29)).

$obj | Add-Member -Type NoteProperty -Name "AADPhoto|Binary" -Value 0x20
$obj | Add-Member -Type NoteProperty -Name "AADPhotoChecksum|String" -Value "23973abc382373"

The AADPhoto attribute of type Binary is where we will store the photo. The AADPhotoChecksum attribute of type String is where we will store a checksum of the photo for use in logic if we need to determine if images have changed easily during imports.

Import.ps1

Take the import.ps1 from my Azure AD PSMA here and make the following additions;

  • On your MIM Sync Server download/install the Pscx PowerShell Module.
    • The Pscx Powershell Module is required for Get-Hash (to calculate Image checksum) based on variables vs a file on the local disk
    • You can get the module from the Gallery using Install-Module Pscx -Force
    • Add these two lines up the top of the import.ps1 script. Around line 26 is a good spot
# Powershell Module required for Get-Hash (to calculate Image checksum)
Import-Module Pscx
  • Add the following lines into the Import.ps1 in the section where we are creating the object to pass to the MA. After the $obj.Add(“AADCity”,$user.city) line is a good spot.
  • What the script below does is create a WebClient rather than use Invoke-RestMethod or Invoke-WebRequest to get the users Azure AD Profile image only if the ‘thumbnailPhoto@odata.mediaContentType’ attribute exists which indicates the user has a profile photo. I’m using the WebClient over the PowerShell Invoke-RestMethod or Invoke-WebRequest functions so that the returned object is in binary format (rather than being returned as a string), which saves having to convert it to binary or output to a file and read it back in. The WebClient is also faster for transferring images/data.
  • Once the image has been returned (line 8 below) the image is added to the object as the attribute AADPhoto to be passed to the MA (line 11)
  • Line 14 gets the checksum for the image and adds that to the AADPhotoChecksum attribute in line 16.

Other changes

Now that you’ve updated the Schema and Import scripts, you will need to;

  • Refresh your schema on your Azure AD PSMA to get the new attributes (AADPhoto and AADPhotoChecksum) added
  • Select the two new attributes in the Attributes section of your Azure AD PSMA

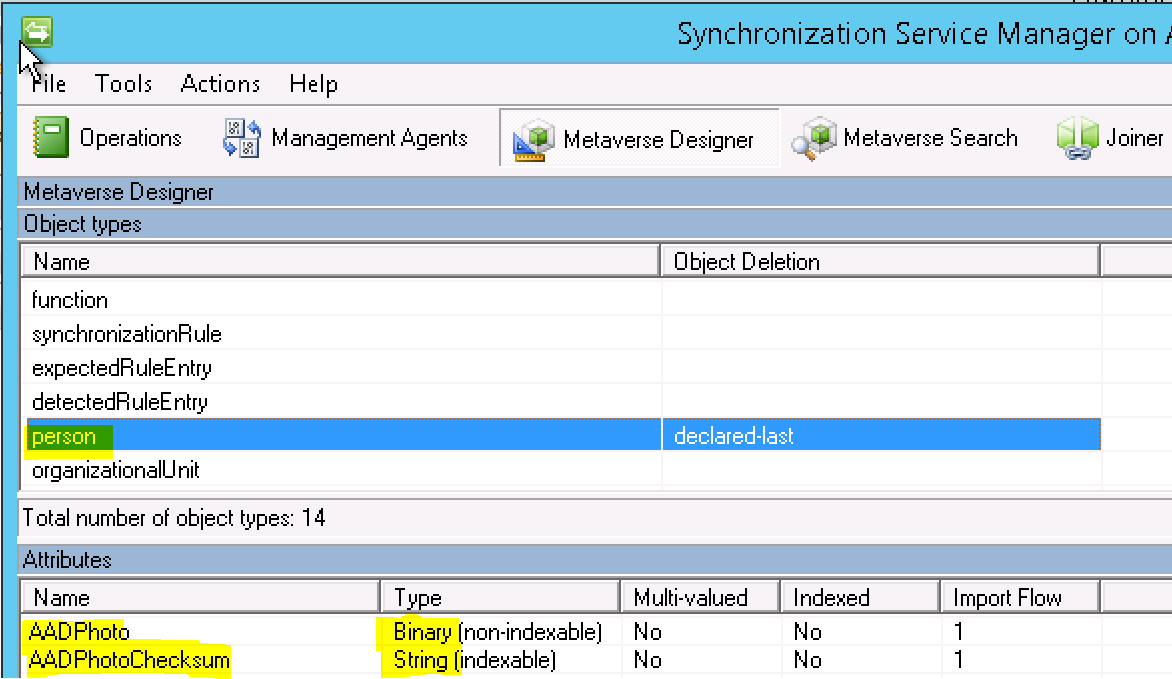

  • Create in your MetaVerse via the MetaVerse Designer two new attributes on the person (or whatever ObjectType you are using for users), for AADPhoto and AADPhotoChecksum. Make sure that AADPhoto is of type Binary and AADPhotoChecksum is of type string.

Azure Active Directory Photo Attributes

  • Configure your Attribute Flow on your Azure AD PSMA to import the AADPhoto and AADPhotoChecksum attributes into the Metaverse. Once done and you’ve performed an Import and Sync you will have Azure AD Photos in your MV.

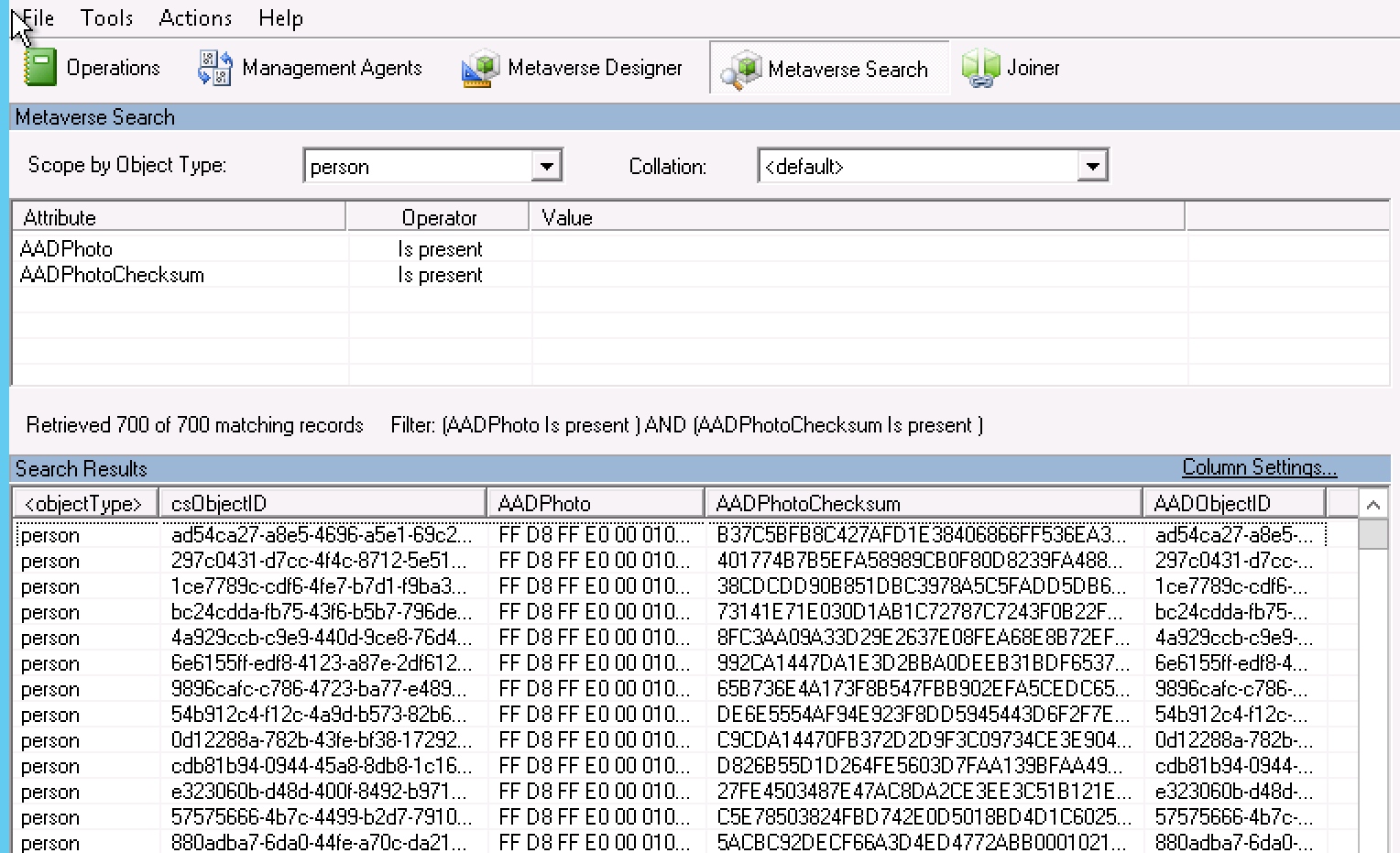

Azure Active Directory Photo Data

  • How do you know they are correct ? Let’s extract one from the MV, write it to a file and have a look at it. This small script using the Lithnet MIIS Automation PowerShell Module makes it easy. First I get my user object from the MV. I then have a look at the text string version of the image (to make sure it is there), then output the binary version to a file in the C:\Temp directory.
$me = Get-MVObject -ObjectType person -Attribute accountName -Value "drobinson"
[string]$myphoto = $me.Attributes.AADPhoto.Values.ValueString
[System.Io.File]::WriteAllBytes("c:\temp\UserPhoto.jpg" ,$me.Attributes.AADPhoto.Values.ValueBinary )

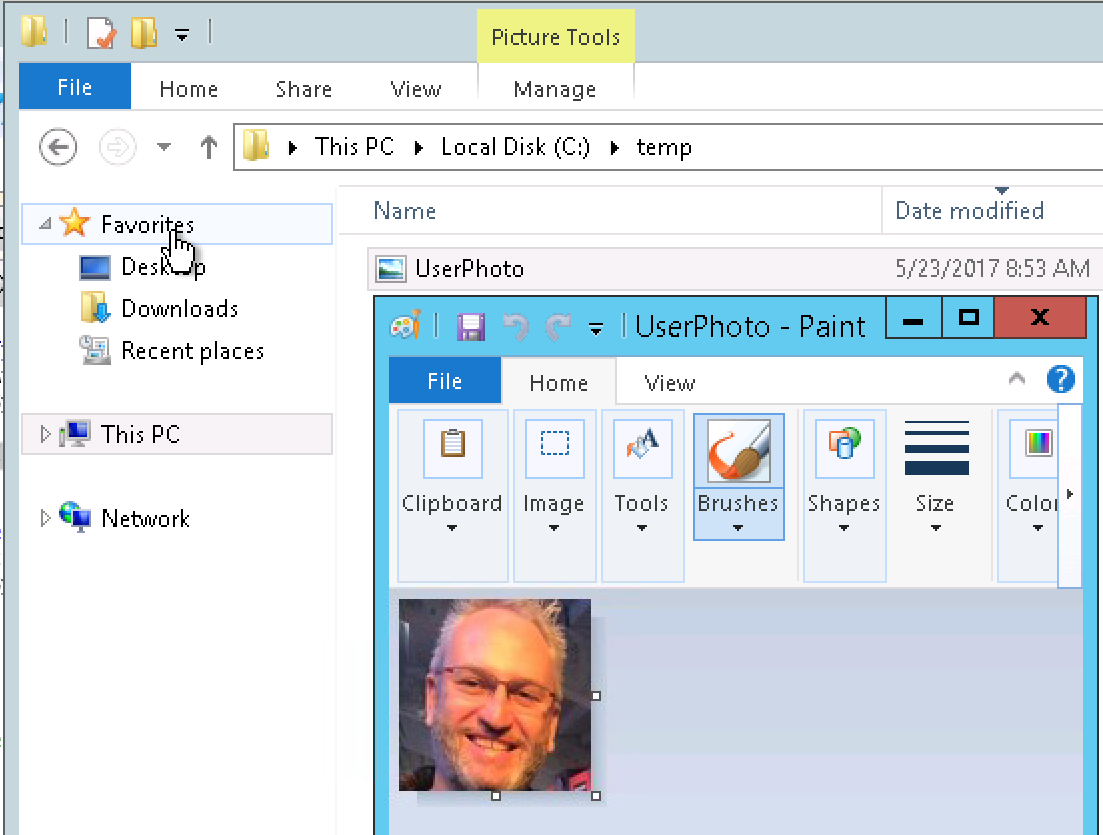

  • Sure enough. The image is valid.

Azure Active Directory Photo

Conclusion

Photos are still just bits of data. Once you know how to get them and manipulate them you can do what ever you need to with them. See Part two that takes this concept and extends it to Office 365.
